CNC MACHINE CAPABILITIES
Computerized Numerical Control
LASER - MAZAK TURBO X 48
Champion
X-Axes – 2650 (104.3) mm/in
Y-Axes – 1270 (50) mm/in
Z-Axes – 1—(3.9) mm/in
Maximum Work Piece size:
2250 x 1250 x 12 mm
98.4 x 49.2 x .047 in

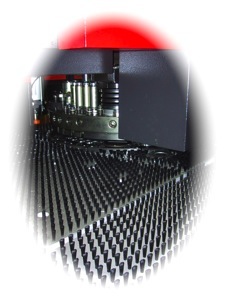

CNC PUNCH PRESS - AMADA VIPROS 255
Press capacity: 20 metric tons or 22 US tons (196kn)
Max sheet size: 1270x 2540 mm (50” x 100”) with reposition
Max sheet thickness: 6.4 mm (.250”)
Max sheet weight: 105kg (231 lb at axial feed speed F4 or 62kg (136 lb) at axial feed
speed F1
NC SPECIFICATIONS:
NC model: FANUC 18-PC
Control axes: 4 axes simultaneously controlled
Program code: ISO or EIA
Program format: Address and data
Memory capacity: 160m (520ft) in tape length
NOTE: This is a 31 station turret; consisting of 19 A-stations (1/2”)
8 B-stations (1-1/4”)
2 C stations (2”)
2 D stations (3-1/2”)
Of the 31 stations two are index stations
CNC PUNCH PRESS - AMADA PEGA 255
Press capacity: 20 metric tons or 22 US tons
Max sheet size: 1270x 2540 (50x100”)
Max sheet thickness: 6.4 mm (.250 inches)
Punching accuracy: within +/-0.1 mm
NC SPECIFICATIONS:
NC model: FANUC 18-PC
NOTE: This is a 31 station turret; same as the AMADA VIPROS
CNC PUNCH PRESS - STRIPPIT LVD SIENA PLUS
Press capacity: 20 metric tons
Tool capacity: 31 stations (thick turret)
Max sheet size: 49.2 x 160.0 inches with reposition
Max sheet thickness: .138 mild steel or .250 aluminum
Punching accuracy: within +/-0.1m or .002 inches
NOTE: This 31 station turret has 3 index stations which are D stations fully index able
CNC SHEAR - ADIRA HYDRAULIC
Maximum capacity nominal thickness mild steel
Maximum working length off back gauge 48”
Maximum length off side gauge 72”
Heaviest gauge 11 gauge
HYDRAULIC/MECHANICAL
PRESS MACHINE CAPABILITY
3- 4ft Adira Hydraulic Press Brakes (Bends up to 10ga .135”)
2-8ft Adira Hydraulic Press Brakes (Bends up to 3ga .239”)
1-10ft Adira Press Brake (Bends up to ¼ .250”)
1-6ft Adira Press Brake (Bends up to 10ga .135”)
2- 6ft Mechanical Press Brakes (15 Ton Capacity)
2- 4ft Mechanical Press Brakes (10 Ton Capacity)
NOTE: All specifications are based on mild steel fabrication
WELDING CAPABILITIES
TIG WELDING MACHINE (3)
Capable of welding, stainless steel, aluminum cold or hot roll steel
MIG WELDING MACHINE (15)
Capable of welding cold or hot roll steel, stainless steel, aluminum, in any size
SPOT WELDING MACHINE (12)
This machine can also weld stainless steel, cold or hot roll steel from 20ga up to 12ga
BUTT WELDING MACHINE (4)
Machine capable of welding rod wires up to 3/8 in diameter; these machines can also weld rods to sheet metal plates (from 22ga up to 14ga in thickness)
MULTI-HEAD SPOT WELDING MACHINE (2)
Machine capable to spot weld entire grids in all different shapes
OTHER CAPABILITIES
TUBE BENDING MACHINE (1)
Machine designated to bend tube (pipe) up to 1-1/4” in diameter to any angle
ROTARY TABLE BENDERS (5)
These machine can bend cold or hot rod steel rods, aluminum rods, galvanized rods up to 3/8” in diameter to any angle and also are capable to bend frames; triangles or any type of trapezoid
PEMSERTER PRESSES (4)
This machine can press studs up to 1/4-20 up to 1-1/2” in length; Threads are minimum of 4-40 threads, and also can press PEM nuts up to 5-16 threads
RING ROLLERS (1 small – 1 large)
This machine can turn rod wire of any size in diameter to any circle; from 2” up to any diameter that is needed, by specification; Sheet metal to 48”
OBI Punch Press (2)
60 tons
Cold Saw (1)
Tube cutting
Additional Services
Powder Coating; Assembly; Packing; Shipping; Drop Shipping; Prototyping; Design; Engineering
